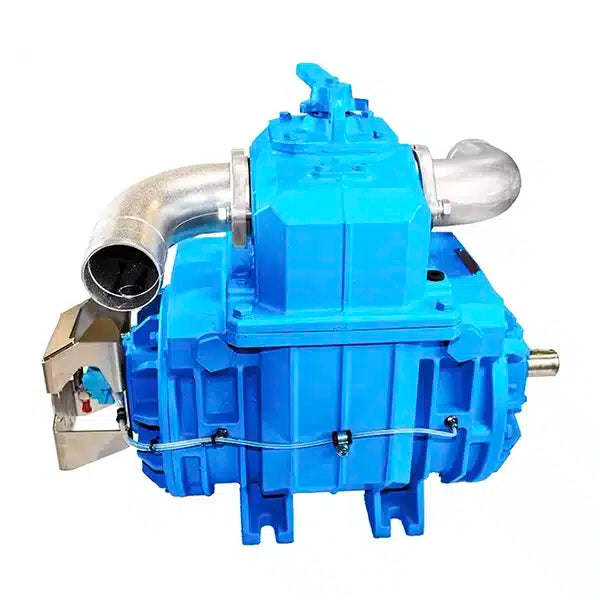

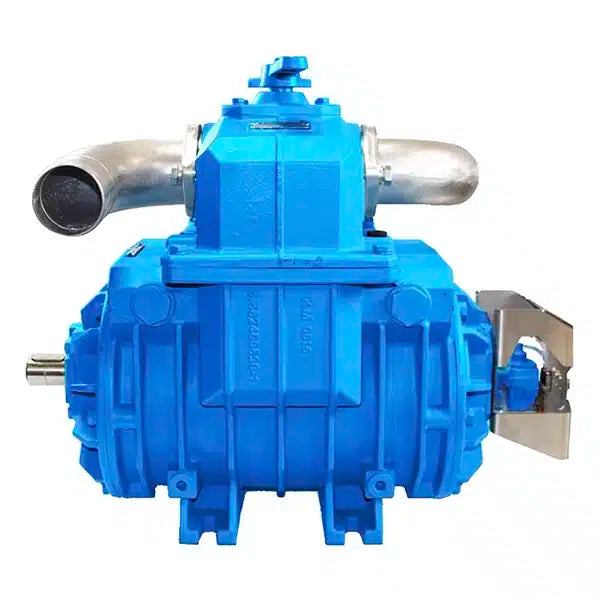

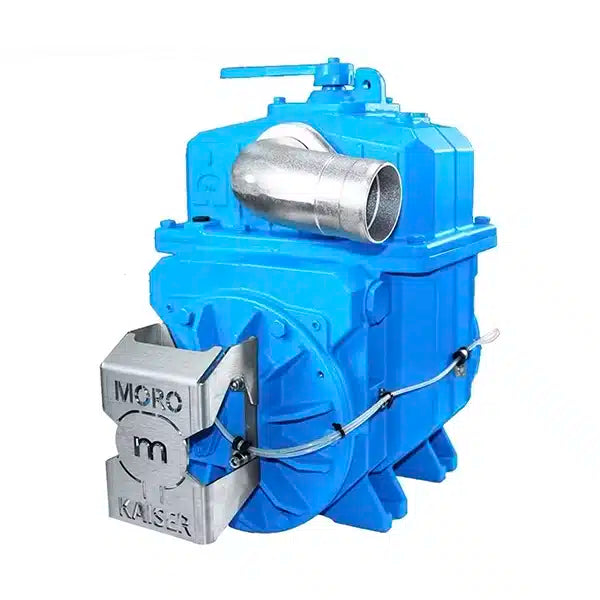

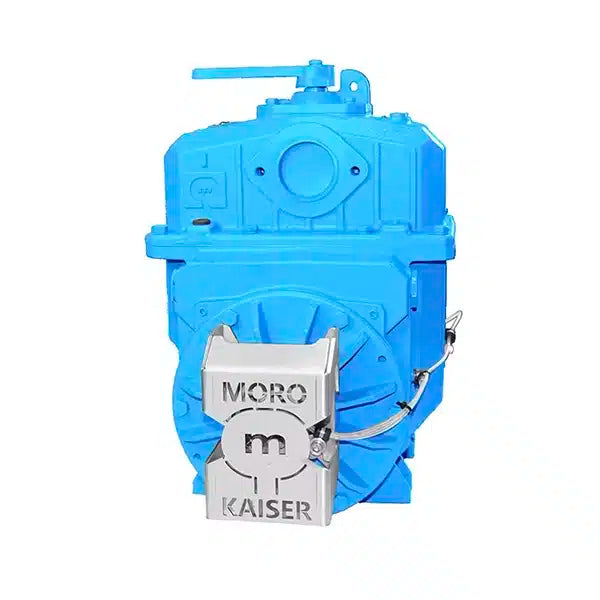

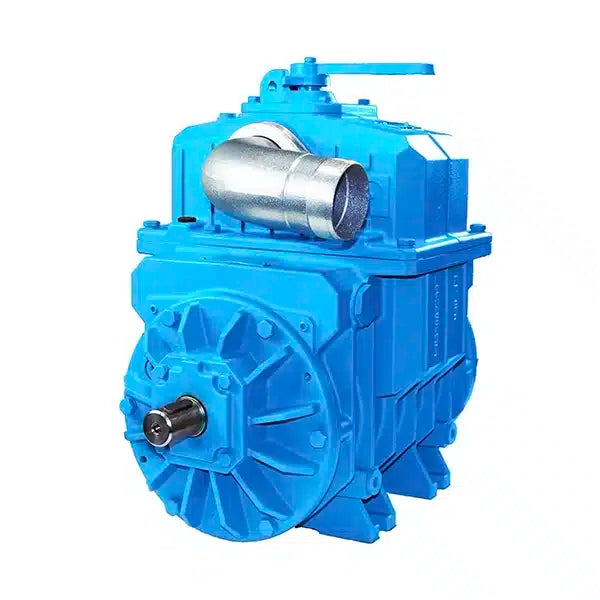

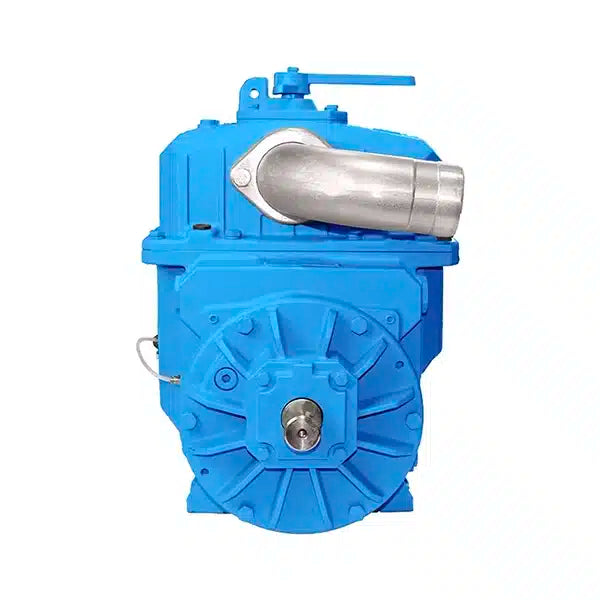

MORO PM70A Vacuum Pump

CFM 332 | PSI 29 | RPM 1100

• Large open ported manifold design reduces noise and air friction
• High performance Kevlar vanes with visual inspection ports in casing
• High quality Viton oil seals – longer life than traditional oil seals
• Low rotating speed leads to longer pump life

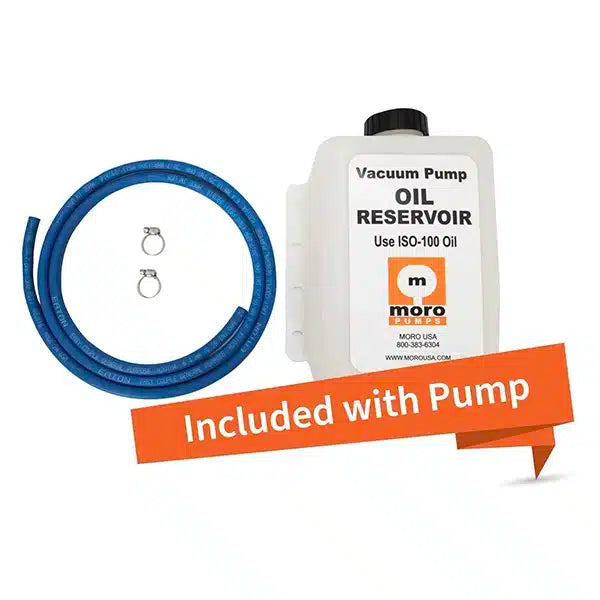

• Remote oil tank
• Sealed bearings – low oil consumption
• Quiet operation
• 3″ Hose connections with elbows

PM70A Vacuum Pump

The Moro AIR Series radiant cooled vacuum pumps embody the most elevated standards in the field of vacuum suction pumps. These pumps are designed to be used in industrial applications that have varying capability requirements. Moro offers three separate AIR Series pumps to meet these differing application needs.

The AIR Series vacuum pumps are crafted with a cast iron body to guarantee maximum reliability. Cast Iron is the most efficient material for releasing heat from the pump. The air intake and discharge are designed to reduce noise and heat production. This series is equipped with a special inspection port in the pump body allowing the operator to visually check the pump’s operation. The non-return and the four-way valves are integrated into the pump. The hose connection elbows consist of flange couplings and can be moved in a desired direction in accordance with the requirements of the vacuum pump usage.

The AIR Series was designed to improve the heat exchange of the pump in heavy-duty usage. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties.

Air Cooled MORO PM70A Vacuum Pump produces free air flow of 332 CFM.
