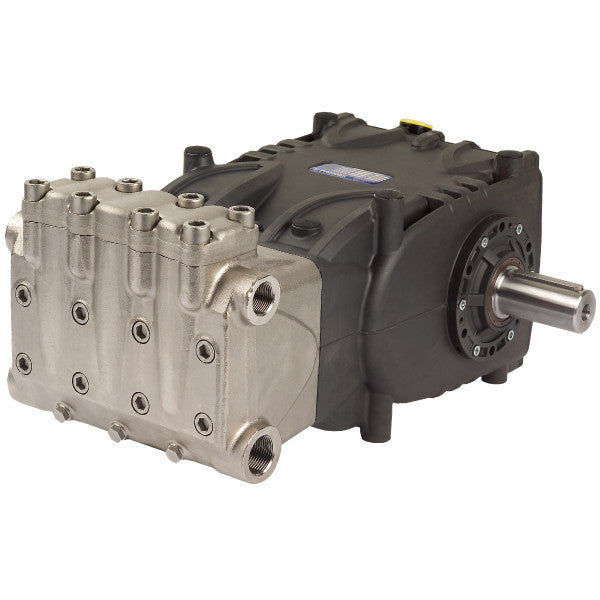

Load image into Gallery viewer, Super Sucker Vacuum Truck Parts Pump 6000-02528

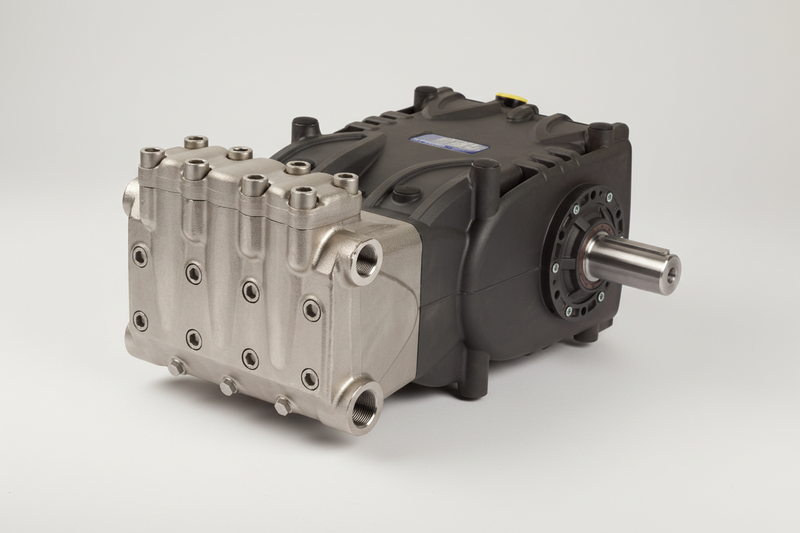

Load image into Gallery viewer, General Pump HF-25A

HF25A (18 GPM @ 4000 PSI); General Pump

Vendor General Pump
Regular price $7,999.96
Sale price $7,999.96 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.

HF25A (18 GPM @ 4000 PSI)

Ships LTL Freight

Technical Specifications

Max GPM: 19.6
RPM: 1000
Inlet Port: 1 inch
Max Temperature: 140 degrees F
Bore: 25 millimeter
Shaft Diameter: 40 millimeter
Stroke: 50 millimeter
Horsepower: 53
Crankcase Capacity: 128.5 ounce
Max PSI: 4060

Product Description

4060 PSI General Pump

This HF series pump is made up of stainless steel valves with solid ceramic plungers, cast iron guide, nickel treated and taper roller bearings. It has low-high pressure packing design with an integrated cooling system.

Dimensions: 20.0" X 14.5 X 9.4"
Features:

  • Top and bottom mounting holes allowing for easy left to right shaft conversion.
  • Low-high pressure packing design with integrated cooling system.
  • High volumetric efficient suction/delivery valves.
  • Splash lubrication
  • SAE-B Hydraulic bell housing and flexible couplers available

Specifications:

  • Max Volume: 19.6 GPM
  • Max Discharge Pressure: 4060 PSI
  • Max Pump Speed: 1000 RPM
  • Max Inlet Pressure: 45 PSI
  • Max Fluid Temp: 140 degrees F
  • Inlet: 1" NPTF
  • Outlet: 3/4" NPTF
  • Bore: 25mm
  • Stroke: 50mm
  • Shaft: 40mm
